– Linux System with Open Source
– Alarming for Suspected Fever Target
– No additional components that require floor space
– High-efficiency rate of the existing screening process
– Simultaneous for metal detection and temperature screening

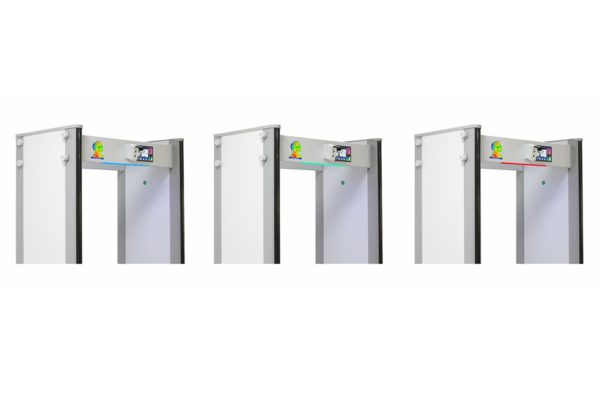

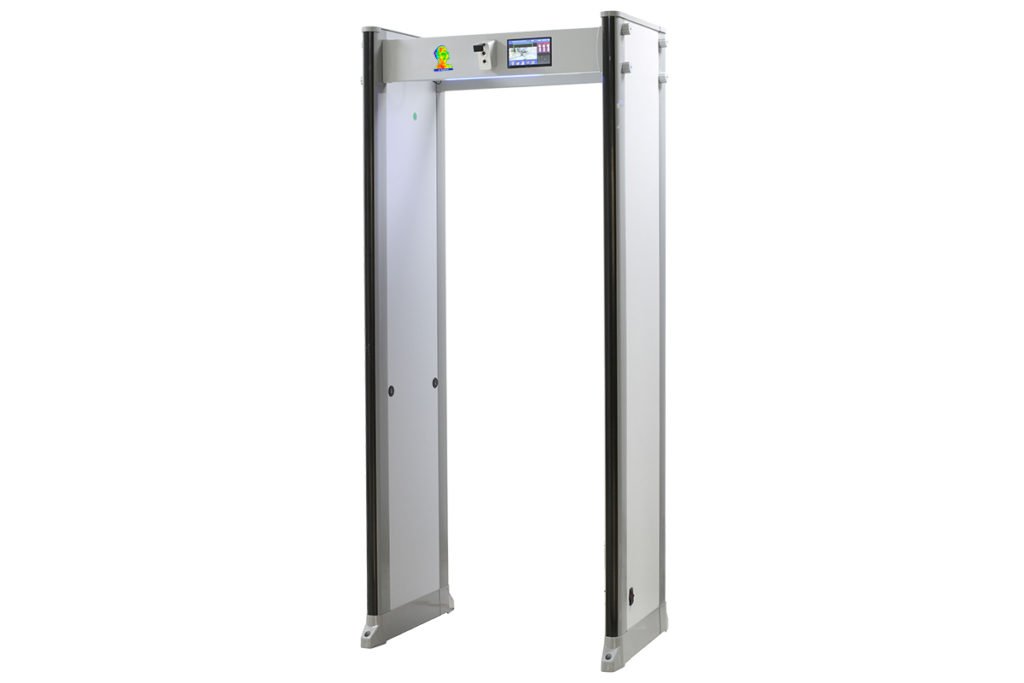

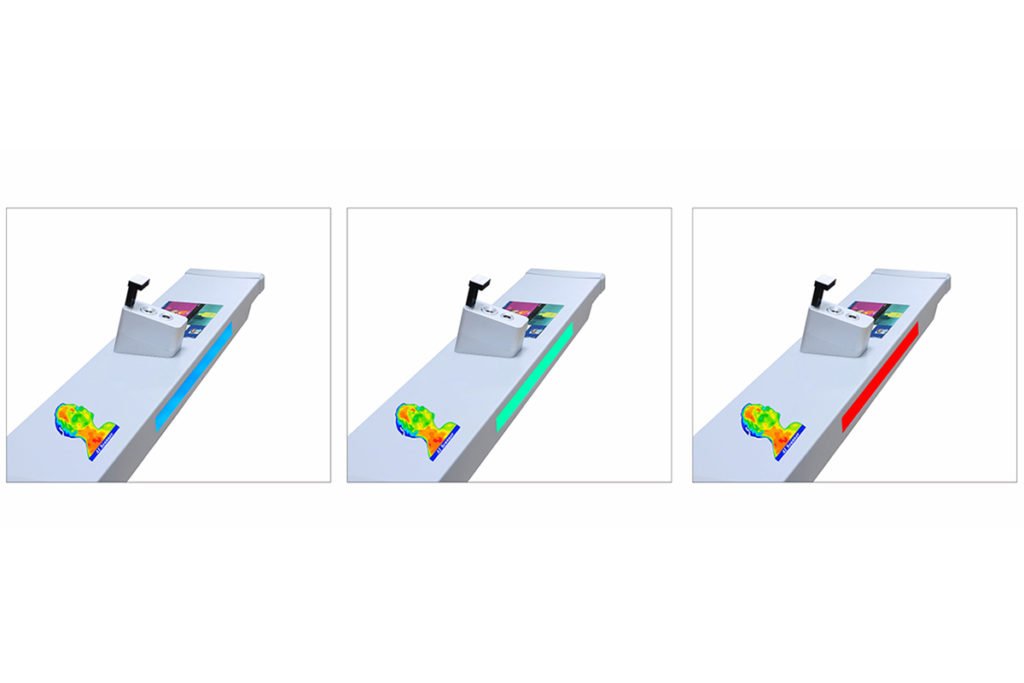

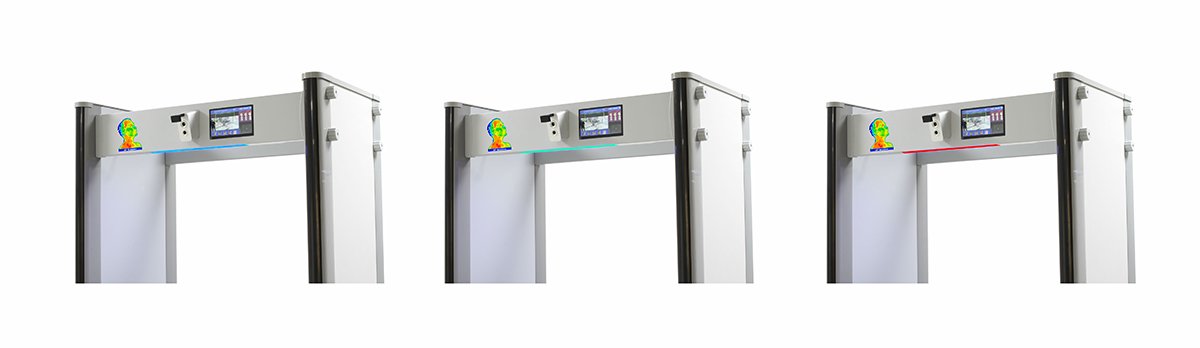

The Safeagle 2021 Intelligent New Generation all-in-one thermal temp-screening system model “SE-C2” is highly integrated into the rectangle crossbar. Specially developed for initial rapid temp-screening for COVID-19. Comes with a black body and system-on-chip (SoC), making it a “portable and detachable temp-screening solution” for all Walk Through Metal Detectors on the market. And comes with 3 status indicators to remind the operator of visual and audible alarms at the same time. (Green for normal temp, Red for high fever, Blue for standby)
Type of Use…………………………: Multi-Face Temperature Detection
Sensor Type………………………..: Vox Uncooled Thermal Sensor
Effective Pixel………………………: 320*240(76,800 resolution)
Pixel Size……………………………..: 17µm
Spectral Range……………………: 8µm~14µm
Thermal Sensitivity (NETD)…:≤50mK at f/1.0(0.05℃)
Sensor Type…………………………: 1/28 inches CMOS
Max. Resolution…………………..: 1920*1080
Pixel/SNR……………………………..: 200W/＞56dB
Measure Temp Range………..: 35℃～38℃
Accuracy……………………………….: around ±0.2℃
Operating Temperature……..: -10℃〜45℃
Storage Temperature………….: -20℃〜45℃
Detection Range………………….: <1-5m
