– Simultaneous for metal detection and temperature screening
– High-efficiency rate of the existing screening process
– No additional components that require floor space
– Linux System with Open Source
– Alarming for Suspected Fever Target

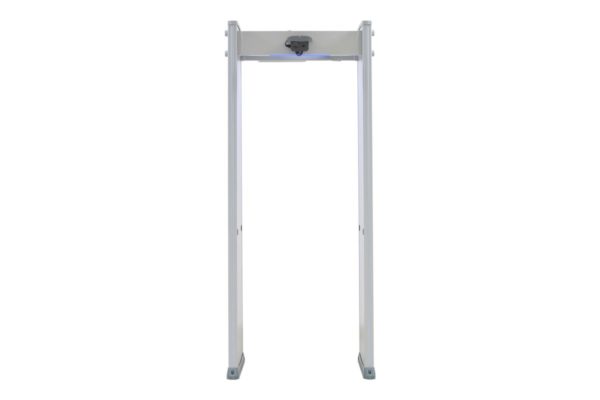

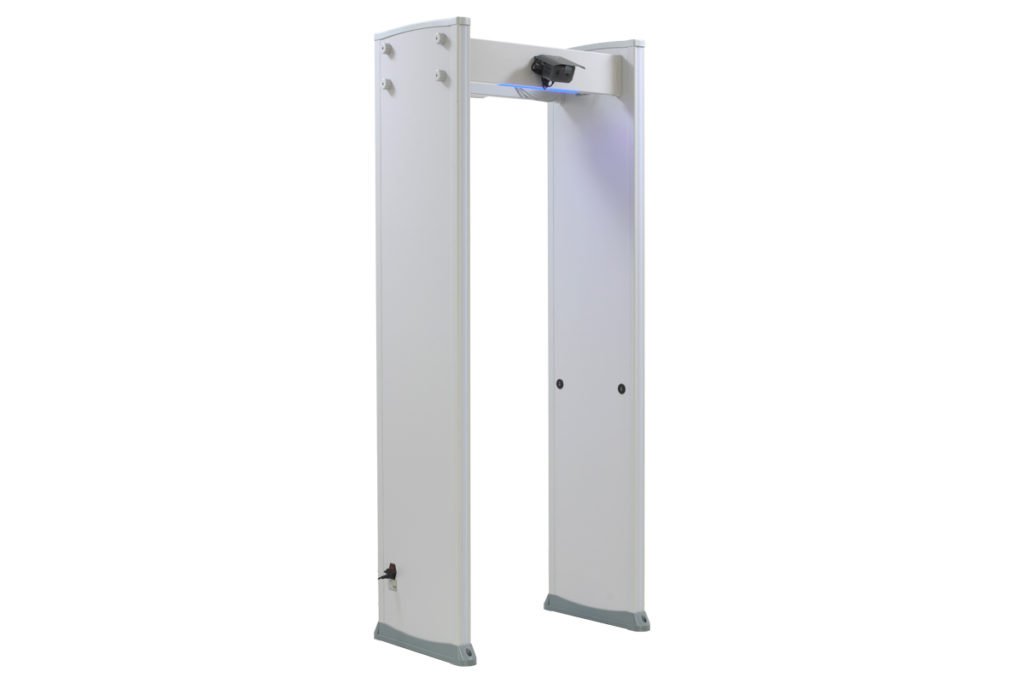

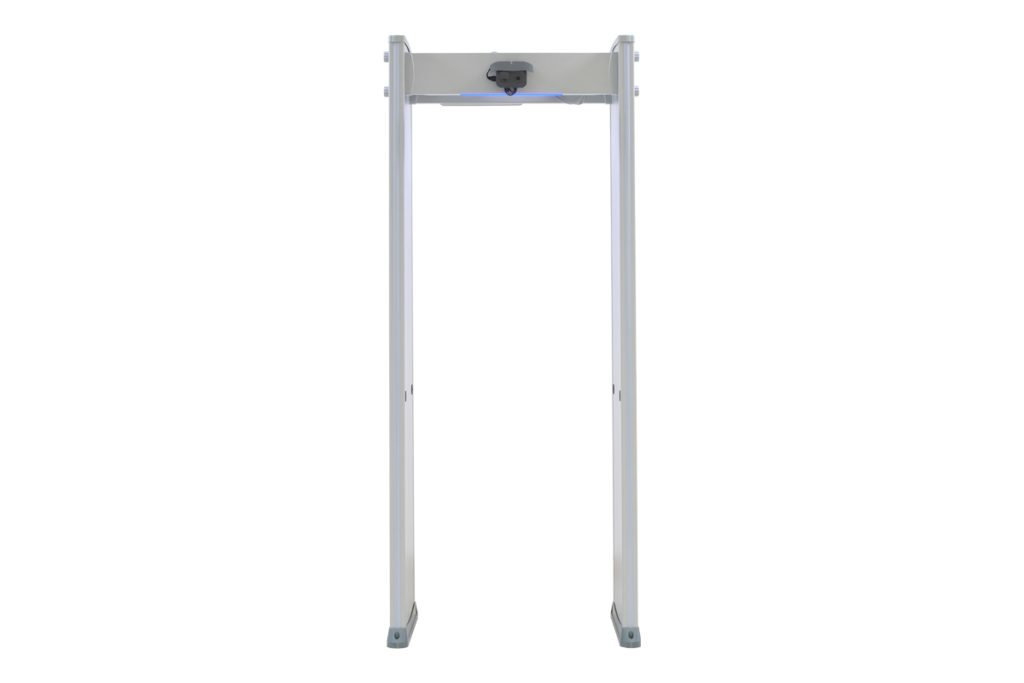

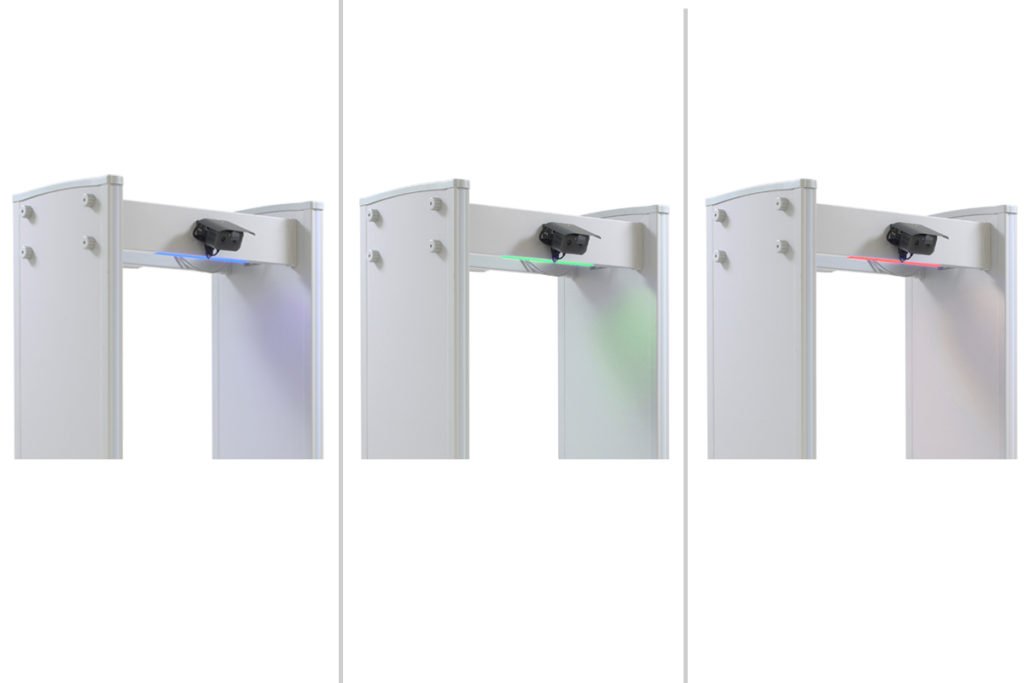

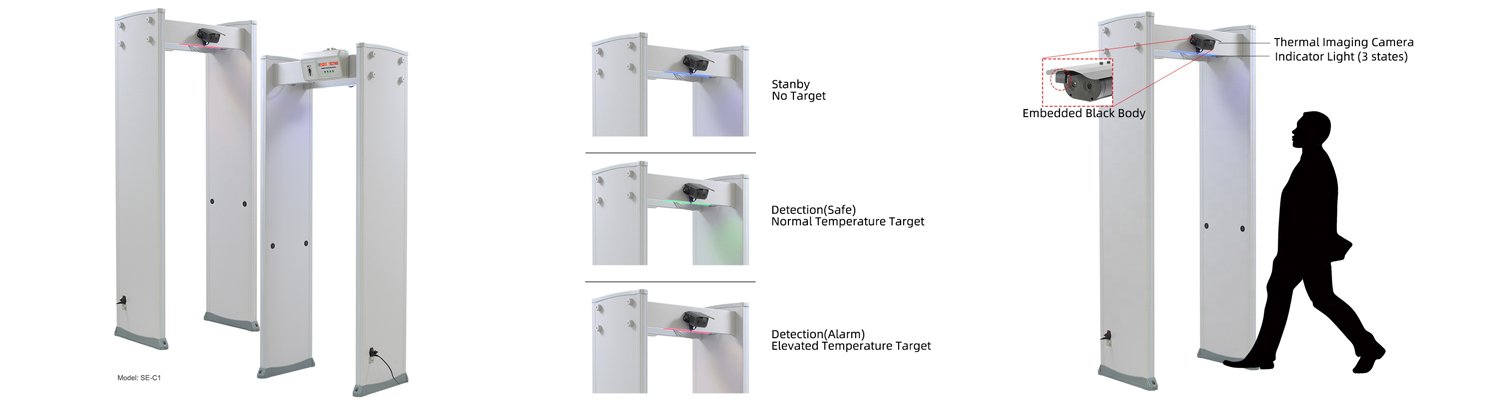

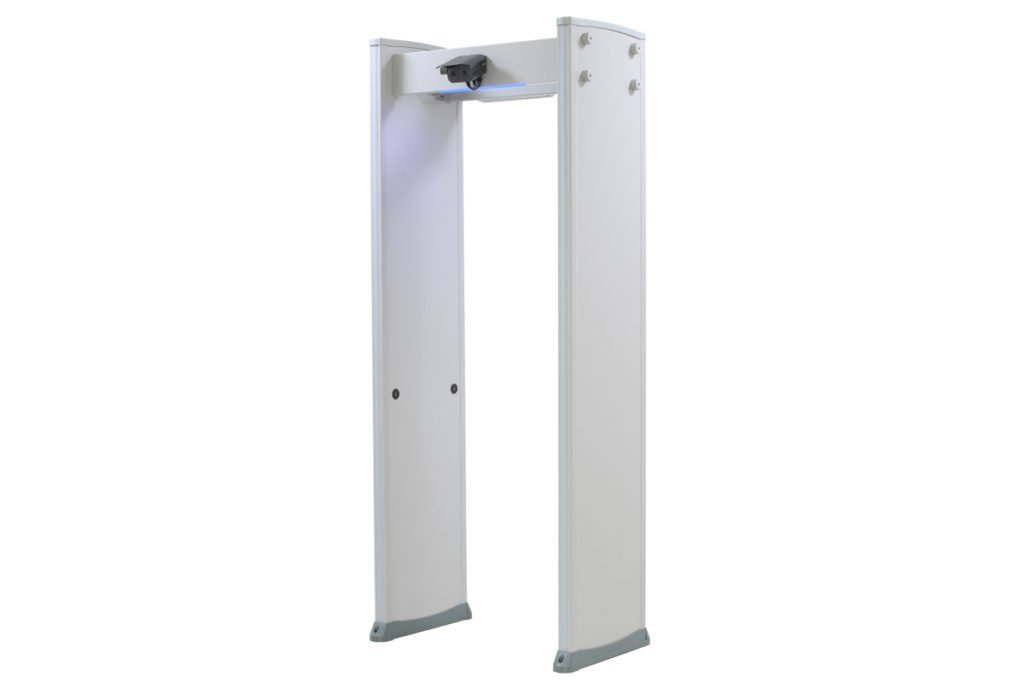

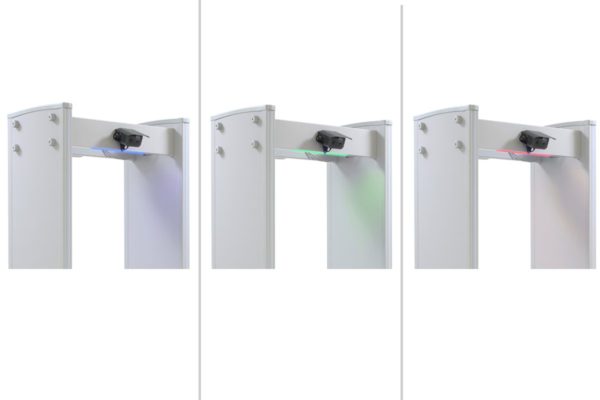

Safeagle 2021 cutting-edge SETC-C1 temperature screening system is highly integrated in the crossbar, especially for the initial temperature screening for COVID-19, with the crucial blackbody and embedded small computer (SoC) to be the “portable and dismountable temperature measuring solution” of all the walk-through metal detector in the market. It’s coming with an indicator light in 3 states to remind the operator of visual and audible alarm at the same time.
Type of Use…………………………: Temperature Detection
Sensor Type………………………..: Vox Uncooled Thermal Sensor
Effective Pixel………………………:320*240(76,800 resolution)
Pixel Size……………………………..:17µm
Spectral Range……………………:8µm~14µm
Thermal Sensitivity (NETD)…: ≤50mK at f/1.0(0.05℃)
Sensor Type…………………………:1/28 inches CMOS
Max. Resolution…………………..:1920*1080
Pixel/SNR……………………………..:200W/＞56dB
Temperature Range……………:35℃～38℃
Accuracy……………………………….: ±0.3℃
Operating Temperature…….. 0℃～35℃
Storage Temperature…………. -20℃～40℃
Detection Range…………………. 0.5-3m
Product Certification
