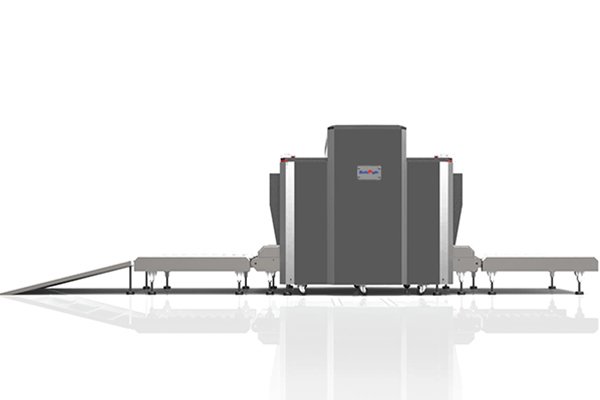

HP-SE8065C
Airport Checkpoints Cargo Screening
– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection
Product Introduction
Safeagle HP-SE8065C with a tunnel opening 801(W)*660(H)mm, 200kg conveyor loading(evenly distributed)can scan all kinds of travel luggage, designed to detect prohibited items and threats by screening big bags and heavy packages at security checkpoints. Ideal for using at public areas, such as checkpoint, shopping mall, customs, port, gym, warehouse, and more. 8065 is a great choice for a large venue and supports the bidirectional operation.
GENERAL SPECIFICATION
• Tunnel Size: 801(W)x 660(H)mm
• Belt Speed: 0.23m/s (45ft/min) Forward
• Conveyor Load: 200 kg(551 lb) Evenly Distributed
• Conveyor Height: 380mm(14.95 in.)
• Noise: <45DB
• Voltage: 140kV
• Wire Detectability: 38 AWG
• Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical 35 mm steel Typical
• Steel Penetration: 35 mm steel Typical
• Tube Current: 0.7 mA
• Cooling: Sealed Oil Bath with Forced Air
• Duty Cycle: 100%,No Warm-Up Procedure Required
• Beam Direction: Diagonally Upward
• Detector: 1024 Channels in an L-Shaped Array Yes
• Dual-energy: Yes
• Generate Angel: 60º
• Power Requirements: 220VAC±10%, 50/60Hz, 10A Max

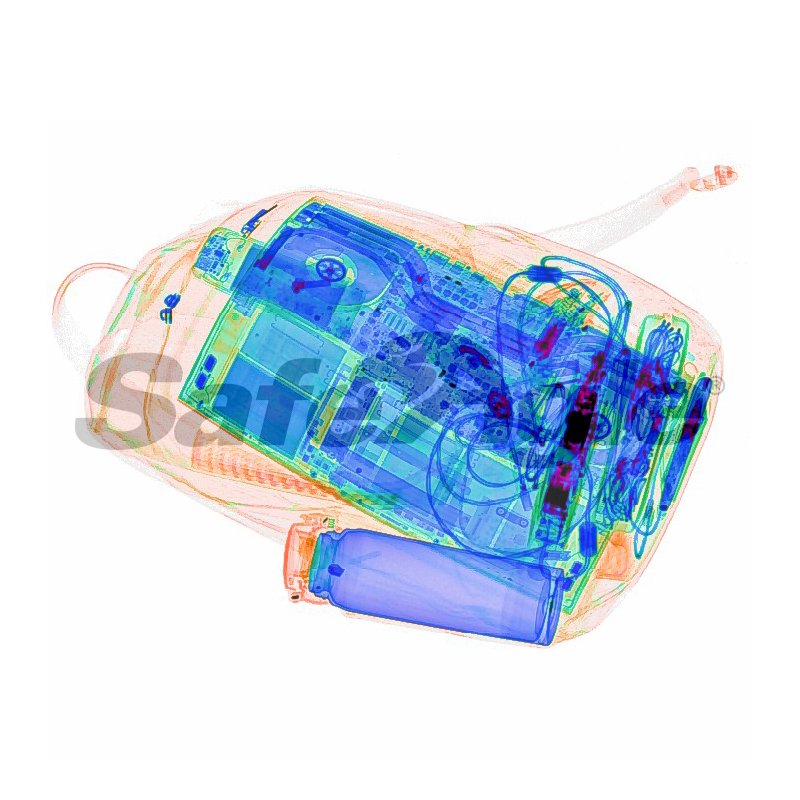

(7-Colors Detect Image)

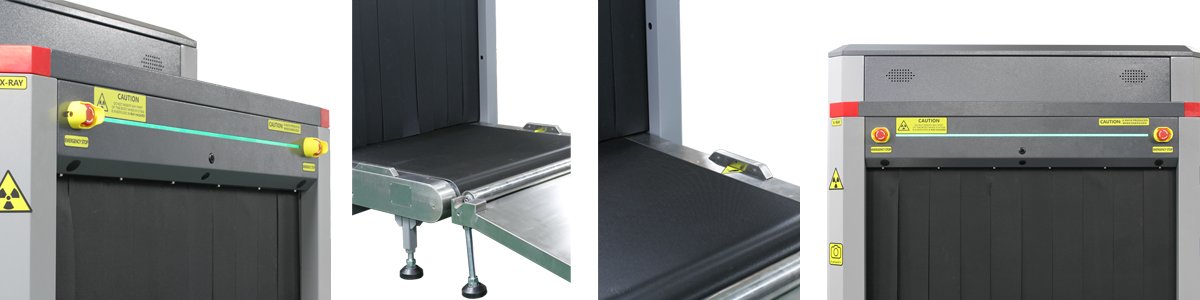

Product Detail
Product Certification
Product Cases (Partial)
