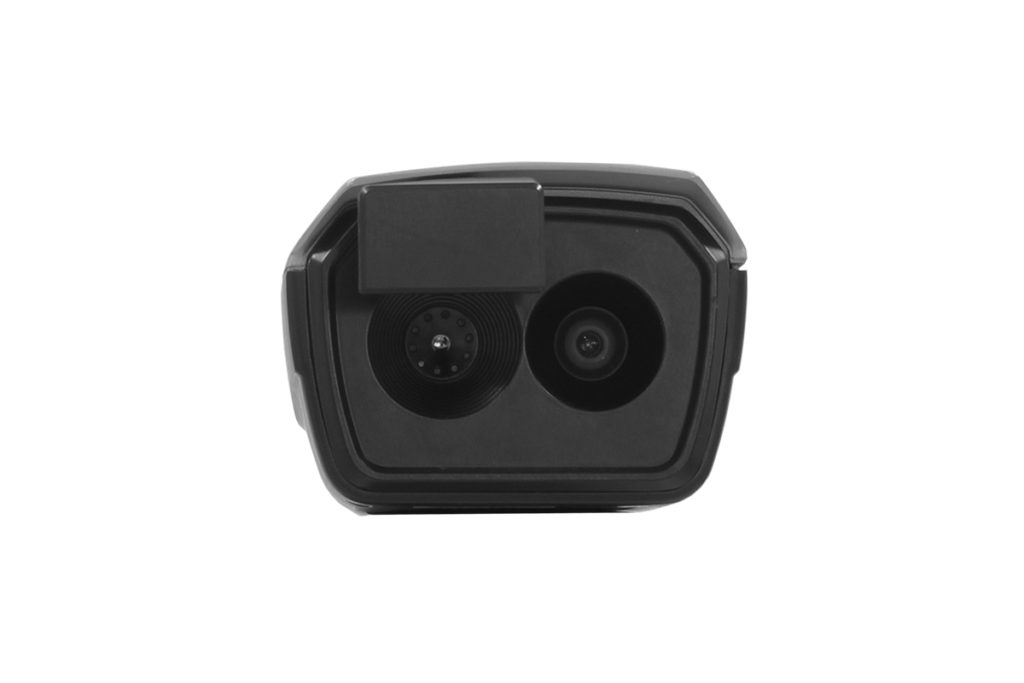

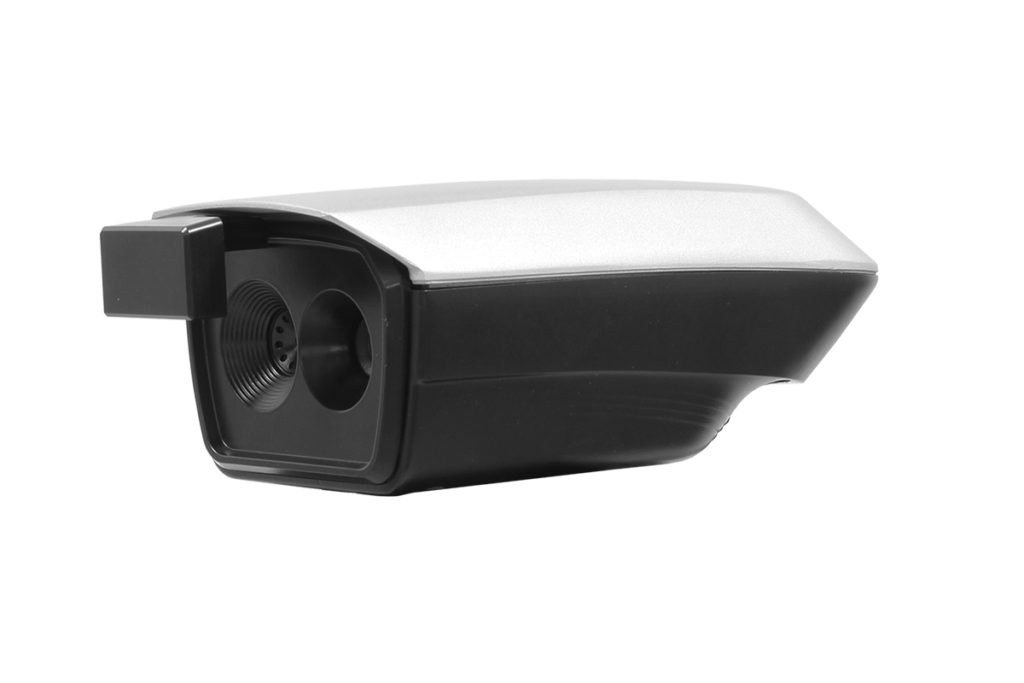

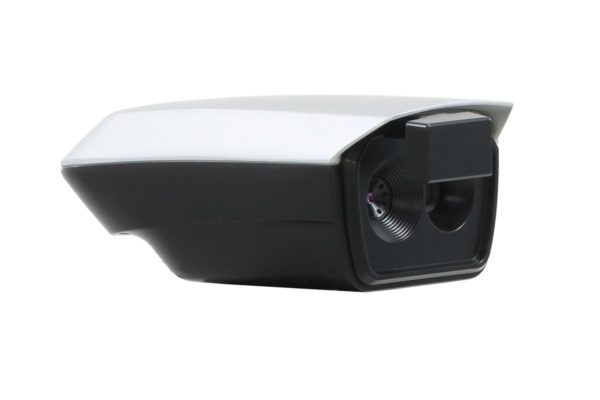

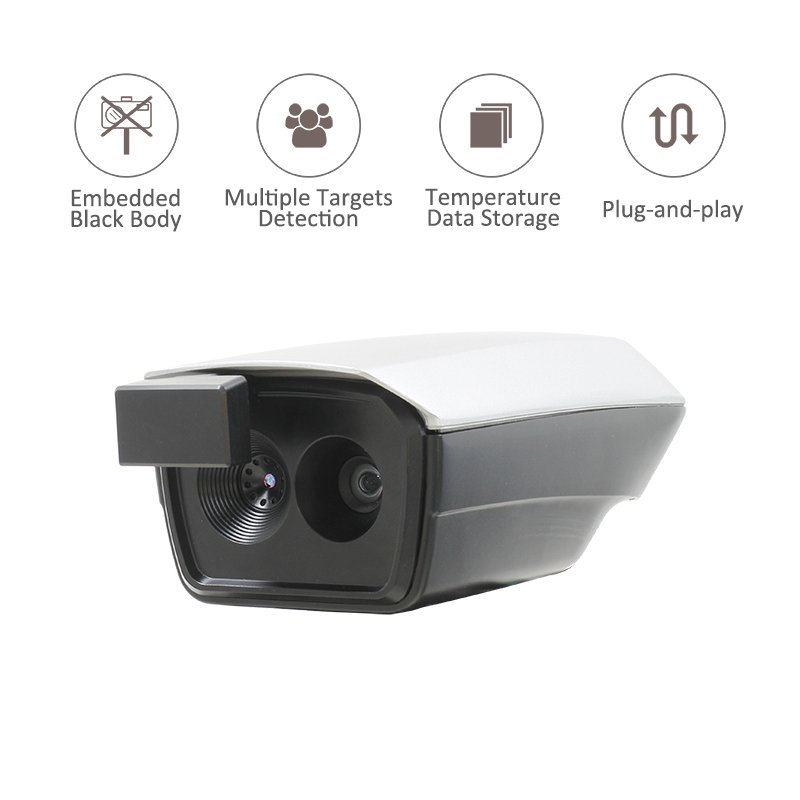

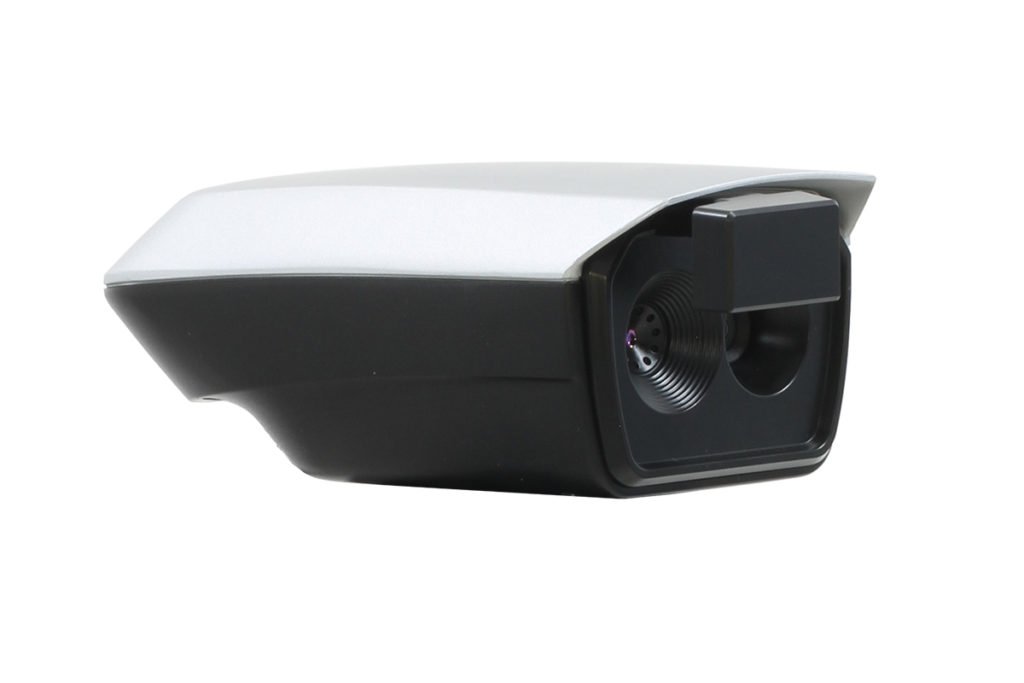

Safeagle Infrared Thermal Imaging Camera Human Body Temperature Measurement Detection Scanner SE20108 for Fever

Safeagle SE20108 Infrared Thermal Imaging Camera is suitable for multiple people’s activities. It does not need to arrange personnel to detect the body temperature at close range. It can quickly and effectively find out the abnormal body temperature personnel. An infrared temperature detector uses an infrared system to measure body temperature effectively.

Safeagle SE20108 Thermal imaging Camera temperature detector systems possess the traits of non-touch, fast, convenient, intuitive, safe, and so on. It overcomes the disadvantages of traditional thermometer, tonometer, point thermometer, and ear thermometer for its individual measurement. And the system prevents from time-consuming, easy cross-infection, and other deficiencies. It efficiently realize the large flow, no-stay detection, effectively control the spread of the epidemic.

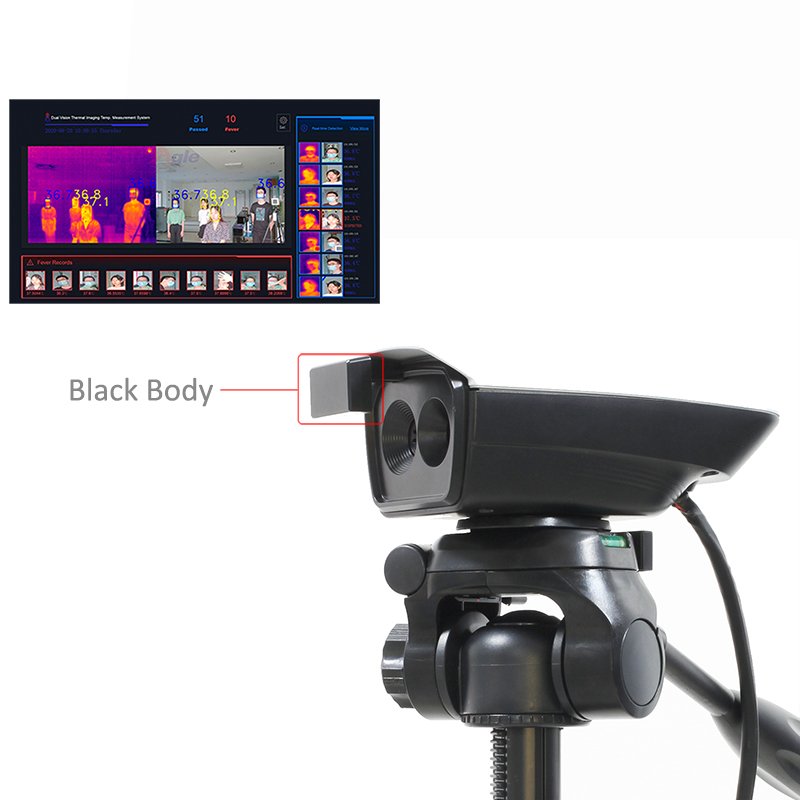

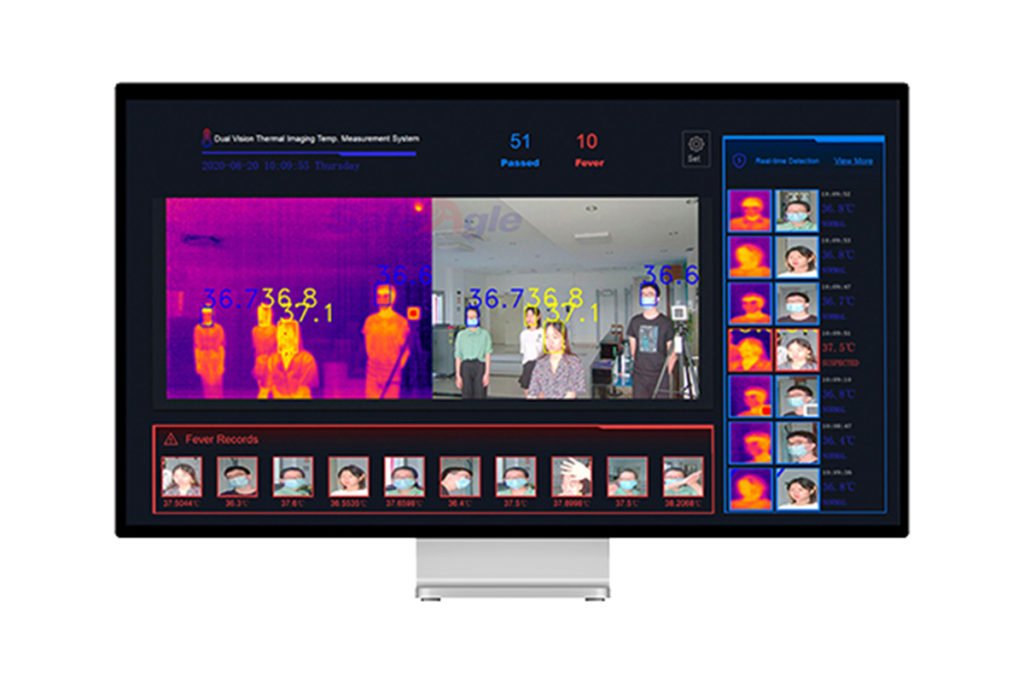

Thermal imaging technology is to collect the infrared electromagnetic waves emitted by the object, the infrared signal into an electrical signal, and then through the signal processing system radiation energy, that is, the temperature is displayed by different grayscale, grayscale of different representative temperature, so as to calculate the object temperature, and output easy to identify the naked eye pseudo-color image.

The system can be applied to schools, social areas, hospitals, enterprises and institutions, and other public entrances and exits, as well as airports, subways, stations, high-speed rail, terminals, and other key places with concentrated traffic to carry out rapid temperature screening. It should be installed indoor or semi-outdoor with sunshade and without sunlight.

Name Sort Parameter












Thermal imaging equipment


Infrared image resolution 320*240
Temperature measurement range -20℃~80℃
Measurement accuracy ±0.3℃
Working band 8-14µm
Field of view/focus length 30°*45°
Picture format JPG
Video format MP4
Detection Range 1-3m
Probe Definition A target is found in the field of view, at which point the image of the target must be more than 1.5 pixels in the critical dimensional direction.。
Shortest focus length 0.15m
Operating temperature range 0℃~40℃
Storage temperature range -20℃~60℃
Plug Type-C, Micro USB
Power supply 5V(Power from external equipment)

Warranty Plan
●Avoid direct sunlight
Please be sure to install indoor or semi-outdoor locations with awnings.
●Avoid Water
Please prevent the device from waterproof and rainproof in use.
●Avoid falling
The external display of this device uses fragile devices, please avoid falling, smashing, bending, heavy pressure, and other operations.
●Keep clean
●Gently wipe the display and panel with materials such as a soft cloth to avoid scrubbing with water and detergent.
●Low-temperature environment
This equipment is human temperature measurement equipment, please use indoor and semi-outdoor awnings, to avoid low temperature affecting the detection.
●Power Supply
Be sure to use your device’s own power cord, and do not use other unknown power cords to avoid burning your device.

About Safeagle

Our team was founded in 2004, headquartered in the beautiful coastal city- Shenzhen, China. It is a technology-oriented enterprise integrating R&D, manufacturing, sales, and service of security inspection equipment. Safeagel, The Professional Security Solution Provider, To Make The world More Safer.
