Walk Through Metal Detector

– Unmatched Anti-interference Performance
– High Discrimination and Throughput
– Bi-directional Detection and Counter
– Full-module Design for Easy and Rapid Assembly
– Real-time Monitoring for Environmental Interface


Contact Us

Product Introduction

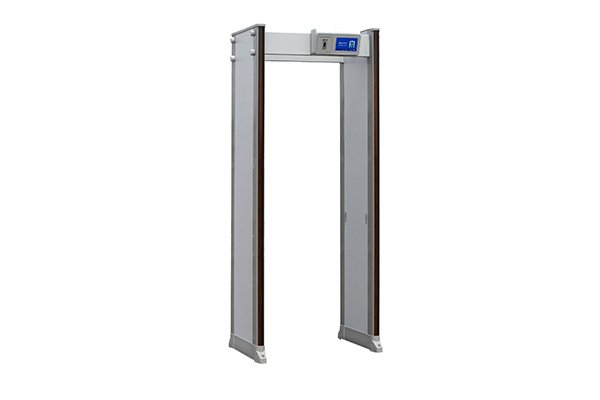

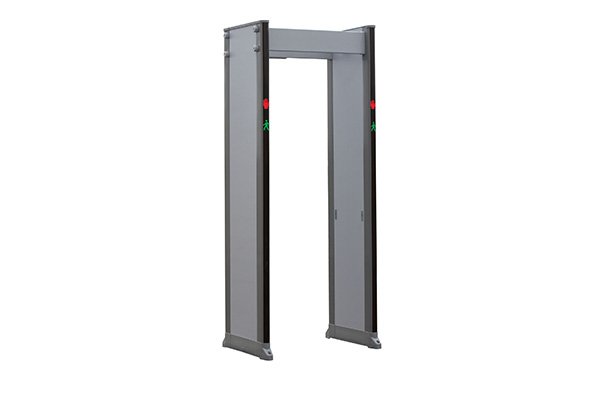

The high-end model SE3307 is a multiple-zone WTMD specifically designed for very high sensitivity applications, such as correctional institutions and industrial loss prevention. It provides pinpointing of individual and multiple metal targets from the shoe level to the crossbar, detects and visually indicates the location and number of possible threat objects. This detector features one-touch self installation, a function that aids in setting up the detector through an automated step-by-step procedure.

General Specification

Sensitivity Level: 500 grades(adjustable)

Distinct Sensitivity Level: 1000 grades(adjustable)

Power Consumption: 10 W

Security Detection Program: 60(built-in)

Pass through Rate: 0.4m/s~1.2m/s

Working Frequency Range: 1~99 bands

Net Weight.: 47kg

Outer dimensions: Approx 225cm x 100cm x 60cm (height x width x depth)

Inner dimensions: Approx 210cm x 80cm x 60cm (height x width x depth)

Portable packing size:Approx 105cm x 65cm x 70cm (height x width x depth)

Dimension Tolerance: ±5%

Working Voltage: 100~240VAC, 50~60 Hz

Working Environment Temperature:-10℃-+45℃

Advanced Features

  • Touch screen: 7-inch HDMI LCD touch screen, easy to operate and understand.
  • 33 independent zones available to choose, more accurate detection of dangerous goods.
  • Adjustable sensitivity of each detection zone, multi-alarm sounds to choose
  • Operating frequency can be adjusted manually or automatically
  • Detection technology: Even detection technology, no blind spot
  • Internet technology: Remote upgrade system and remote control system
  • Statistics: Record the pass and alarm numbers
  • Query function: The system has real-time information query function
  • Intelligent Standby: The system has intelligent standby operation alerts
  • Detection speed: more than 60 people pass and detect in 1 minute
  • Intelligent partion: Can change detection zones according customers’ demands
  • Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON
  • We integrated 90 application occasions in the program, can change all zones,sensitivity when you choose different occasion
  • No harm to human body with heart peacemaker, pregnant women, magnetic floppy and recording tapes


  • CE compliance
  • ISO9001 Quality Management System
  • ISO14001 Environment Management System
  • OHSAS18001 Occupational Health Management System


Airport, port, travelling check point
Conference, stadium, access control, court, visiting check point
power plant, factory, hotel, restaurant, entertainment, power venue, KTV, temple

Installation Sites

Dapeng music beach in Shenzhen China
Exhibition in Guangzhou China
Government office in Australia
Museum in Poland

Product Certification

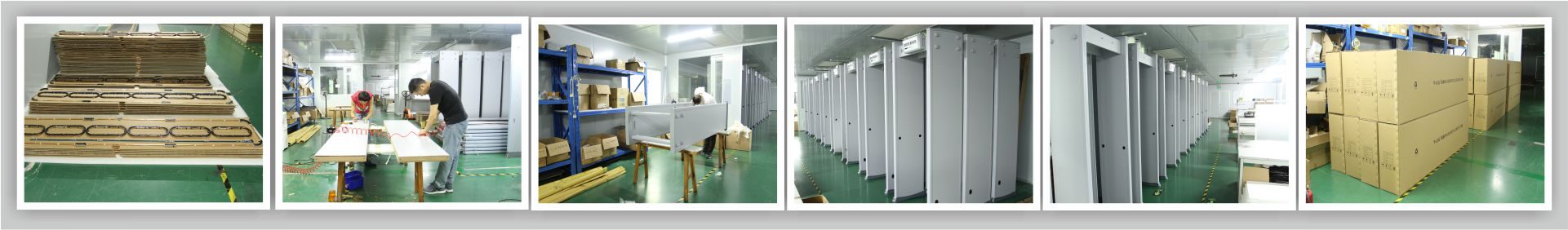

Production workshop
