Hand Held Explosive Trace Detector

– 6s Fast Detection Speed
– 0.1 Pictogram Sensitivity
– Fluorescence Based
– Automatic Calibration
– Rugged Metal Casing


Contact Us

Product Introduction

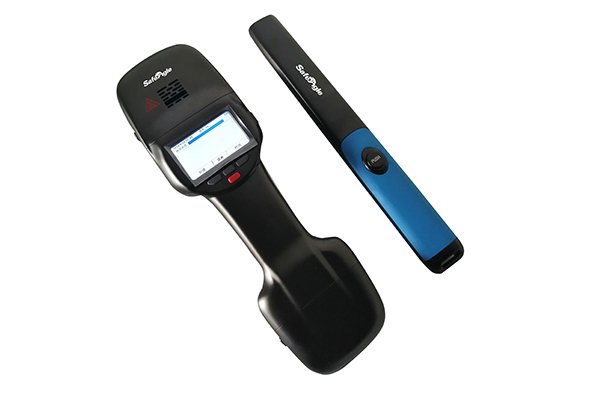

The Safeagle SE-ED1905 Portable Explosive Trace Detector adopts the advanced fluorescent polymer sensing technology, which is based on the change in photometric intensity of fluorescence emitted by fluorescent polymers. Not only can it detect the military/commercial explosive, ammonium nitrate explosive, but the oxides explosive. Operator can sampling the target by wiping(particular) and closing the bottle mouth(liquid,vapor). It is safest and the most sensitive explosive detector with rugged metal casing, starts from cold within two minutes, and backup by a eight-hours battery. The detection speed is less than 6 seconds, the detectability is up to 0.1 pictogram TNT, more than 30 explosives. The SE-ED1905 is becoming a preferred explosive detection device of armed police, public security and other government departments.

General Specification – Technology:

Sample collection: Trace Particles and Vapors (Inhalation)

Sensitivity: Picogram level (1 nanogram = 1000 picogram)

Analysis time: Less than 6s

Start-up time: Inhalation (less than 10s), wipe (less than 2 mins, and less than 2mins from cold

Alarm type: Visual and Audible

Explosive detected: Military and plastic explosives, including TNT, C4, RDX, BP, PETN, AN, and others. Improvised and homemade explosives, including TATP, HMTD, Urea Nitrate, Ammonium Nitrate, and others. Propellants and Taggants, including Black and Smokeless powder, EGDN, and others. Additional explosives upon expandable threat library.

Display screen: 3″ TFT Color display screen

Operation temperature: -20℃ to 55℃

Battery: Two rechargeable Lithium-Ion batteries (continuous working time of each 8 hours minimum)

Weight: 1.65KG including battery

Dimensions: 380x110x60mm

Advanced Features

  • Easy Carrying and Operating
    Safeagle SE-ED1905 has very highest sensitivity, which is one of the smallest and lightest ETDs in the world.
  • Radioactive Free
    World’s leading fluorescent polymer sensing technology, fastest detection speed. No radioactive source and harmless to operators and targets.
  • High Sensitivity
    Safeagle SE-ED1905 can detect explosives to picogram level.
  • Stable Functionality
    There are two detecting modes:  Trace Particles and Vapors (Inhalation)


Big Events, Airport, Military, Embassies, Museum, Hotel, Government Building,  etc.
