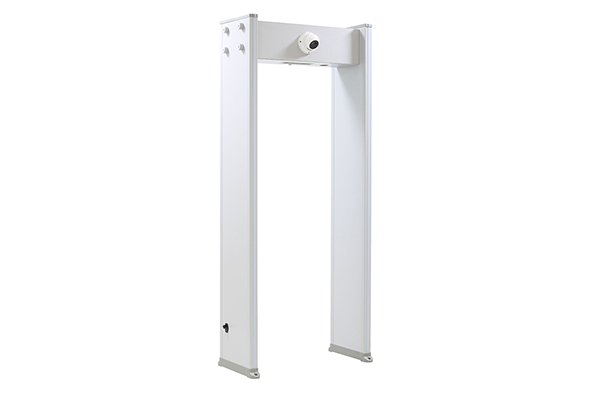

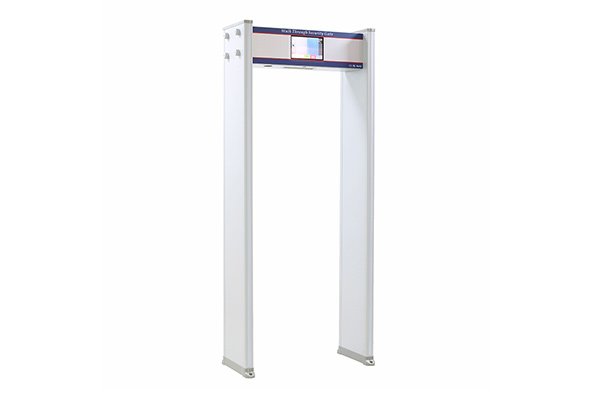

Thermal Imaging Gate Temperature Detector Safeagl SE20108-II Frame Dual Vision Infrared Thermal imaging Gate


Safeagle SE20108-II Thermal Imaging Gate Temperature Detector gate frame dual vision infrared thermal imaging camera specially designed for body temperature measurement, realizing two in one detection mode for temperature and metal detection(can be optional). The thermal camera captures and creates a dual image (thermal imaging and visible light imaging) of an object by using infrared radiation emitted from the objects and human, which uses infrared thermal imaging technology to detect the temperature of passing people, realizes non-contact rapid temperature detection in crowded population places, no-stop, automatically give the alarm for elevated temperature, showing the body temperature in real-time.

Parameter

Thermal Camera Visible Light
Appearance Aviation aluminum packaging binocular thermal camera Sensor Type AR0230/1080P  CMOS
Type of Use Temperature Detection Maximum Resolution 1920*1080
Sensor Type VOx Uncooled Thermal Sensor Technology Pixe/SNRl 200W/>56dB
Effective Pixel 256*192 White Balance Automatic
Pixel Size 12µm SNR(Signal to Noise Ratio) Max 41dB
Thermal Sensitivity(NETD) <50mk@25℃ F#1.0, 25Hz Picture Format MJPG
Focal Length 3.2mm Focal Length 4.35mm+/-5%
Angel of View H:42°; V:56° Angel of View 62°
Focus Control Athermalization Gain Control Automatic
Lens Aperture F1.1 Lens Aperture F2.0+/-5%
Noise Reduction 2D noise reduction Noise Reduction 2D noise reduction
Thermal image Gain Control Support Display
Temperature Range 32℃~42℃ Built-in Touch Screen 10.1″LCD; 1280X800 resolution
Accuracy 35~40℃: :±0.5℃

32~34℃/41~42℃: :±0.3℃

Android 6.0.1 System RK3288 Cortex-A17+GPU Mail-T764, Up to 1.8G; 2GB RAM; 8GB memory
Operating Temperature Range  25~32°C Network WiFi/RJ45; 3G USB dongle ext
Alarming Real-time Voice Prompt Buletooth Support
Detection Range 2.5m Card Slot SD,Support up to 32GB
Environment Indoor/Windless USB Mini USB OTG; USB Host 2.0
Power Consumption <0.85W Language Multi-language

Vertical Channel Size: 2000(H) x 800(W) x400(D)mmInstallation Environment

  1. Vertical Dimension: 2230(H) x 910(W) x400(D)mm
  2. Working Voltage: AC 220V, 50~60 Hz
  3. Working Environment Temperature:25℃~+32℃
  4. Pass through Rate: Over 60 people per minute
  5. Package Size: 2 cartons
  6. Technology: Digital pulse technology
  7. Sensitivity Level: 1-255 grades(adjustable)
  8. Distinct Sensitivity Level: 40 grades(adjustable)
  9. Power consumption: <30 W
  10. Sensitivity Application: 6
  11. Working Frequency Range: 4k Hz~8k Hz
  12. Alarm Time: 1s
  13. —-Panel:2280*260*650mm/ctn, 48kg
  14. —-Chassis: 780*390*250/ctn, 19kg

About Safeagle

Our team was founded in 2004, headquartered in the beautiful coastal city- Shenzhen, China. It is a technology-oriented enterprise integrating R&D, manufacturing, sales, and service of security inspection equipment. Safeagel, The Professional Security Solution Provider, To Make The world More Safer.

 Please contact us for further details of the Thermal Imaging Gate Temperature Detector Safeagle SE20108-II Dual Vision IR Infrared Thermal Imagining System
