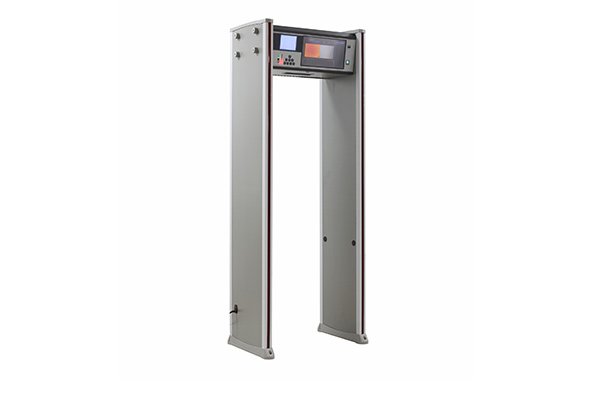

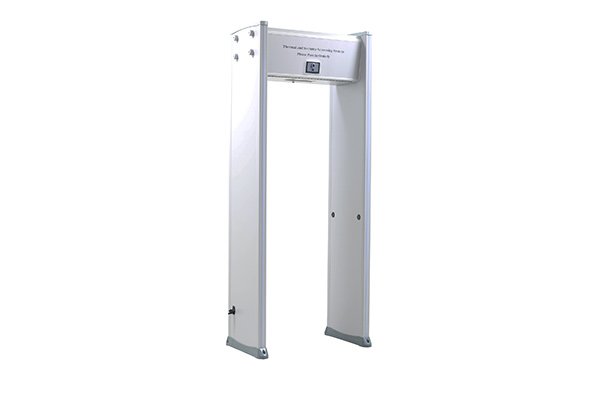

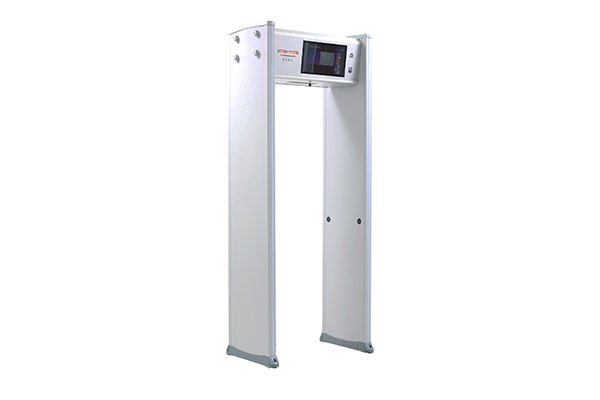

Thermal Imaging Gate Temperature Detector Safeagle SE20108-I Dual Vision IR Infrared Thermal Imagining System

Product Introduction

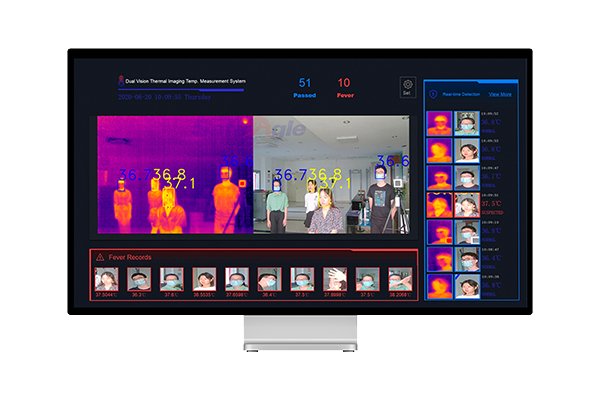

Safeagle SE-20108-I walkthrough type dual vision infrared thermal imaging camera specially designed for body temperature measurement, realizing two in one detection mode for metal and temperature. The built-in thermal camera captures and creates a dual image (thermal imaging and visible light imaging) of an object by using infrared radiation emitted from the objects and human, which uses infrared thermal imaging technology to detect the temperature of passing people, realizes non-contact rapid temperature detection in crowded population places, no-stop, automatically give the alarm for elevated temperature, showing the body temperature in real-time.

Parameter

Thermal Camera   Visible Light
Appearance Aviation aluminum packaging binocular thermal imaging Sensor Type 1/28 inches CMOS
Type of Use Temperature Detection Maximum Resolution 1920*1080
Sensor Type VOx Uncooled Thermal Sensor Technology Pixe/SNRl 200W/>56dB
Effective Pixel 320*240 Horizontal Resolution ≥1100TVL
Pixel Size 17µm Gain Control Automatic
Spectral Range 8µm~14µm DEFOG Electronic through fog
Thermal Sensitivity(NETD) ≤50mK at f/1.0 Electronic Shutter 1s~1/30000s
Focal Length 6.52mm Focal Length 4mm
Angel of View H:34.4°

V:25.8°

Angel of View H: 84°

V: 45°

Opposite angles: 99°

Focus Control Athermalization Wide Dynamict DWDR
Lens Aperture F1.0 Optical Lens Aperture F2.0
Image Intensification Support Strong Light Inhibition Support
Electronic amplification Support Exposure Compensation Support
Thermal imaging Gain Control Automatic Visible Focusing Mode Manual
Noise Reduction 2D noise reduction

3D noise reduction

Noise Reduction 2D noise reduction

3D noise reduction

·         Color Palette 4,Including:

White Hot, Black Hot, Ironbow, Arctic, Rainbow HC

Minimum Illumination Color: 0.05Lux@

(F15, shutter time: 1/30s)
Black & White: 0.0005Lux@

(F15, shutter time: 1/30s)
Opening of infrared light: 0Lux

Temperature Range 20℃~45℃ Power Supply Mode DC12V±20%,POE(802.3af),ePOE
Accuracy Without black body:±0.3℃

With black body:±0.1℃

White Balance Automatic/indoor/outdoor/tracking/manual/sodium lamp/natural light/street lamp
Operating/Storage Temperature Range 0℃~40℃/-20℃~60℃ Consumption <50W(DC12V, Basic power consumption)

<12W(DC12V, Maximum power consumption, Adapter not included)

Detection Range 1-3m Close Range of Visible Light 0.2m
Shortest focus length 0.15m Picture Format JPG
Plug Type-C ,micro USB 3.0 Video Format MP4

Installation Environment

Vertical Channel Size: 2010(H) x 710(W) x580(D)mm

Vertical Dimension: 2200(H) x 820(W) x580(D)mm

Working Voltage: AC 220V, 50~60 Hz

Working Environment Temperature:-20℃-+50℃

Pass through Rate: Over 60 people per minute

Package Size: 2 cartons

Panel:2280*260*650mm/ctn, 65kg

Chassis: 780*390*250/ctn, 5kg

About Safeagle

Our team was founded in 2004, headquartered in the beautiful coastal city- Shenzhen, China. It is a technology-oriented enterprise integrating R&D, manufacturing, sales, and service of security inspection equipment. Safeagel, The Professional Security Solution Provider, To Make The world More Safer.


Please contact us for further details of the Thermal Imaging Gate Temperature Detector Safeagle SE20108-I Dual Vision IR Infrared Thermal Imagining System
