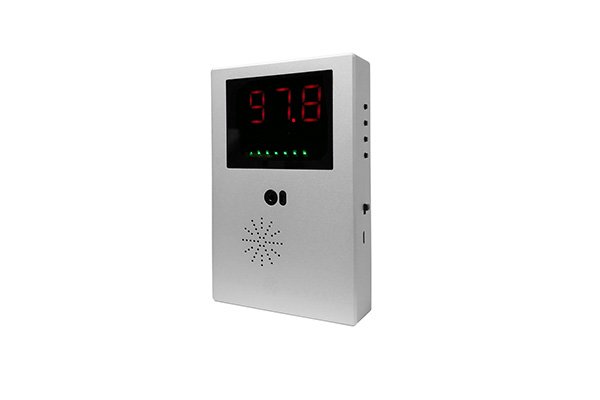

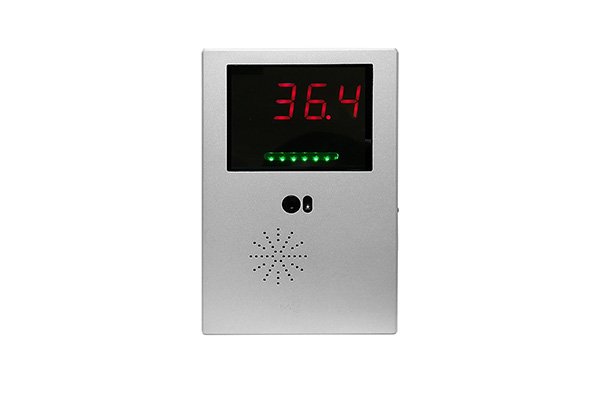

Safeagle SE101-I Non-contact Portable digital display body temperature detector Box

Product Introduction

The SE101-I Smart and Small Body Temperature Detector can quickly measure the temperature in the detection area to ensure accurate and efficient temperature measurement, back with a built-in battery for more than 24 hours working. With sound and light signals of voice warning of normal/abnormal temperature and indicator to remind around people, support high-efficiency body temperature screening in public dense crowds to effectively prevent disease infection. Also, it can be used as a single device, or integrated on Walk Through Metal Detectors, access control systems, disinfection equipment, and other devices. Abnormal temperature alarm function. LED display in real-time. Built-in rechargeable battery, Fahrenheit and centigrade switch. The back bracket can be installed anywhere. Make it easy to use in various public places and various places where face access control is required, like school, community, office place, hotel, hospital,etc….



Parameter

Alarm Threshold: 37.3℃(factory set) Consumption/Voltage:: 8W/5V
Sound Alarm: If more than 37.3℃ Size: 155*98*31mm
Voice Broadcasting Content: Safe/Abnormal Packing Size: 215*125*125mm/ctn
Volume: Non-adjustable N.W./G.W.: 0.59kg/1.32kg
Alarm Duration Within 3s External Power: AC 100~240V, 50/60Hz
Rechargeable Lithium Battery: 1400mAh*1(18650), 5.18Wh

Packing List

  1. Temp.Detector(Sliver)
  2. Power Cable*1
  3. Set Screws
Detection Distance/Speed: 2-10cm/0.5s
Accuracy: ±0.3℃

Optional Accessories

Holder-Stand*1
Temperature Unit: Celsius/Fahrenheit(Adjustable) Holder-Wall-mounted*2
Working Temp./Humidity: -10~40℃/95% Rechargeable Battery*1
  • Non-contact Dynamic Temperature Measurement of Higher Efficiency Screening for 24h.

Can quickly screen and identify abnormal temperature targets, can detect both forehead and wrist.

  • Original Belgium Melexis Brand Sensor with High Precision.

 Stable Performance, actively collect temperature data, quick scan temperature around 0.5 seconds.

  • Detection Distance

1-5cm sensing distance, and height can be placed or installed according to the user’s requirements.

  • Equipment Material-Aviation Aluminum

Be made of aviation aluminum, more durable and not easy to be deformed or damaged while transportation.

  • Safeagle Exclusive Modular Design

It can be single-use or integrated on other devices, such as a walk through metal detector, access control system, etc.

  • Adopts STM program, Prevent High-Temperature False Alarm

 Smart start temp-measure, can prevent false alarm caused by high temperature and direct sunlight.

  • Plug and Play, Easy Operation

No need extra configuration and technicians, No environmental temperature restriction, even -10℃ still works.

 Notice:

  1. Installed and stored in normal temperature, and in a cool, ventilated, flat, dry place, avoid direct sunlight.
  2. Don’t block the sensor and ultrasonic module when starting and using.
  3. No intentional collision on the system.

About Safeagle

Our team was founded in 2004, headquartered in the beautiful coastal city- Shenzhen, China. It is a technology-oriented enterprise integrating R&D, manufacturing, sales, and service of security inspection equipment. Safeagel, The Professional Security Solution Provider, To Make The world More Safer.
