HP-SE100100C

Airport Checkpoints Cargo Screening

– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection


Product Introduction

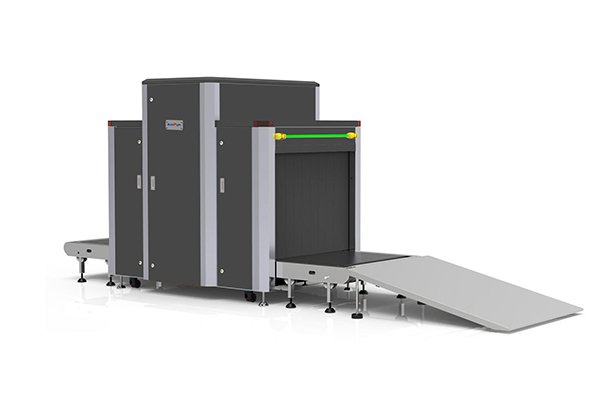

Safeagle HP-SE100100C with a tunnel opening 1001(W)*10001(H)mm, 250kg conveyor loading(evenly distributed)can scan all kinds of travel luggage, designed to detect prohibited items and threats by screening big bags and heavy package at security checkpoints. Ideal for using at public areas, such as checkpoint, shopping mall, customs, port, gym, warehouse and more. 10080 is a great choice for a large venue and support the bidirectional operation.

General Specification

Tunnel Size ………………… 1001(W)x 1001(H)mm 39.6×39.6 in.
X-ray Sensor ………………  Multi-energy
Max. Load …………………   250 kg(Evenly distributed)
Conveyor speed …………  0.22m/s
Conveyor height ………… 370mm
X-Ray leakage ……………… 0.1mR/hr(1µ Sv/h)
Image Resolution ………  21.5”LCD 1920*1080
System Noise ……………   <58 dB
Film safety …………………  Guarantee ISO 1600 Film
System Voltage …………   220 VAC (±10%) 50±3HZ
Power Consumption …   0.8kw (Max)
