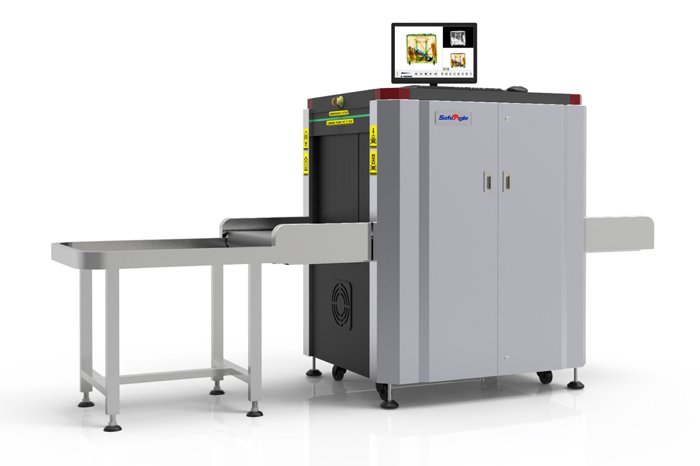

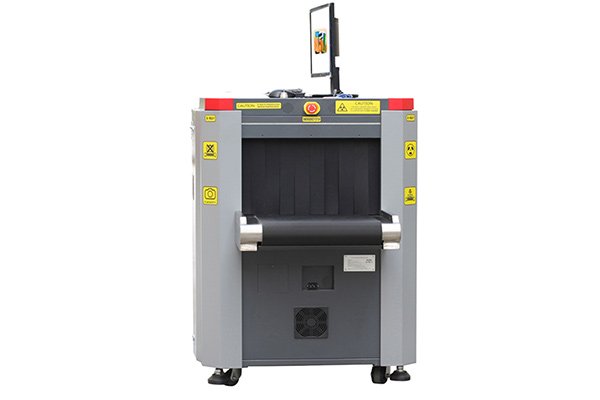

5030 X-ray Baggage ScannerProduct Introduction

Safeagle HP-SE5335C is New Generation Series x ray baggage inspection system which offers high performance threat detection. With tunnel opening size of 530mm x 350mm, can accommodate a range of parcel and baggage size for hotel, events, police office, court, airport and more. The5335dual-energy detection provides material discrimination alert so that screeners can identify the material composition of the scanned object.

X-ray baggage security inspection machine scanning image

General Specification

Tunnel Size …………………  530*350mm
X-ray Sensor ………………   Multi-energy
Max. Load …………………   165 kg(Evenly distributed)
Conveyor speed …………  0.23m/s
Conveyor height ………    710mm
Image Resolution ………  21.5”LCD 1920*1080
System Noise ……………   <58 dB
Film safety …………………  Guarantee ISO 1600 Film
System Voltage …………   220 VAC (±10%) 50±3HZ
Power Consumption …   0.8kw (Max)
Image zoom ……………..   zoom 1, 2 – 3 – 64x

Superior Features

  • Unique & Humanization Design
    It designed with double symmetrical swing door for easy maintenance and operator safety protection.
  • Explosive & Narcotics Detection
    Assist operators in the detection of a range of explosives and narcotics respectively in real time during scanning process by marking potential threat on X-ray image.
  • Highest Precise Images Output
    With over 13 image processing tools and detection alert algorithm functions, the feature rich software allows the operator to more easily and accurately search for contraband.
  • Different Access Modes
    The system provides administrators with hierarchical permissions.
  • Advanced 7 Color Imaging (Optional)
    Enables operators to view screened objects in 7 colors, which helps to identify the potential objects effectively.
  • Touch screen dedicated console (optional)Touch screen dedicated console

Compliance

  • CE compliance
    Directive 2004/108/EC Electromagnetic
    Directive 2006/42/EC Machinery
    Directive 2006/95/EC Low Voltage
  • ISO9001 Quality Management System
  • ISO14001 Environment Management System
  • OHSAS18001 Occupational Health Management System

Applications

Hotel, Shopping mall, Office building, Residential, Embassies, Museum, Factory, Events, Airport etc.
