HP-SE5030C

Airport Checkpoints Cargo Screening

– Switchable 4/7 Color Imaging
– Top-ranking Multi-energy Imaging
– Meticulous Material Discrimination
– Bidirectional Full Tunnel Scanning
– Explosive and Narcotics Detection



Contact Us


Product Introduction

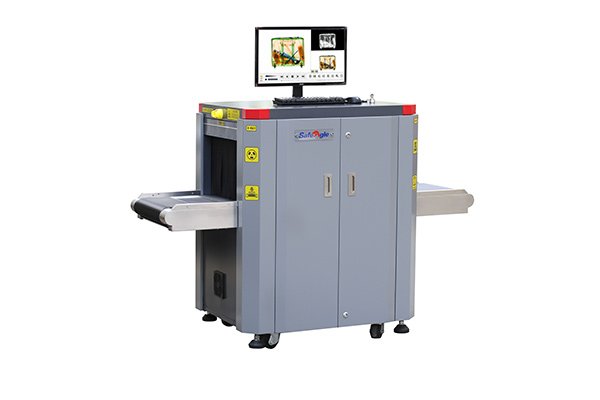

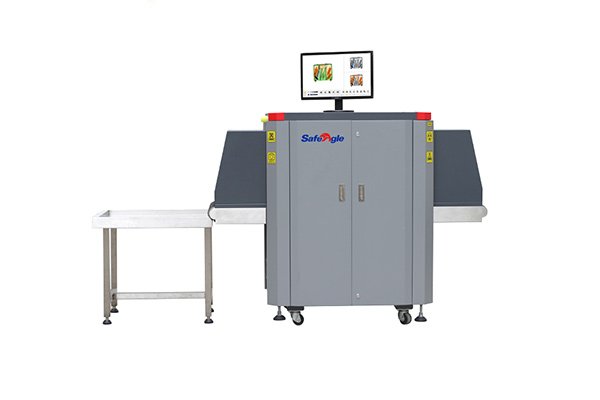

Safeagle HP-SE5030C x-ray baggage inspection system is designed to detect prohibited items and threats by screening bags and package at security checkpoints. Ideal for using at public area, such as hotel, shopping mall, office building, metro station and more. The compact 5030 is a great choice for small or limited spaces, which fits well into any entrance environment.

General Specification

Tunnel Size ………………… 504*304mm
X-ray Sensor ………………  Multi-energy
Max. Load …………………   150 kg(Evenly distributed)
Conveyor Speed …………  0.22m/s
Conveyor Height ………    675mm
Image Resolution ………  21.5”LCD 1920*1080
System Noise ……………   <58 dB
Film Safety ………………     Guarantee ISO 1600 Film
System Voltage …………   220 VAC (±10%) 50±3HZ
Power Consumption …   0.8kw (Max)

Standard Features

  • High Definition Image
    Adopt new generation of HD schema design, providing clear images and stable performance.
  • Dynamic Processing
    Real-time display, optimization functions like edge enhancement, amplification and so on.
  • Image Management
    Built-in image management system, which enables users to browse saved images quickly.
  • Intelligent Alarm
    User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
  • Green Lead Curtain
    Wear-resistant, pollution-free, long service life.
  • Self-Diagnose
    Automatically prompt when failure is detected, and be convenient to maintain.
  • Shutdown With One Key
    When you try to turn off the equipment, just rotate the key, which is convenient and simple.
  • Network Interface
    Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
  • Intelligent Roller
    Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
  • Threat Image Protection
    TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.



Product Certification

Product Cases (Partial)
