F100100C

Airport Checkpoints Cargo Screening

– High Definition Image
– Dynamic Processing
– Intelligent Alarm
– Self-Diagnose
– Shutdown With One Key



Contact Us


Product Introduction

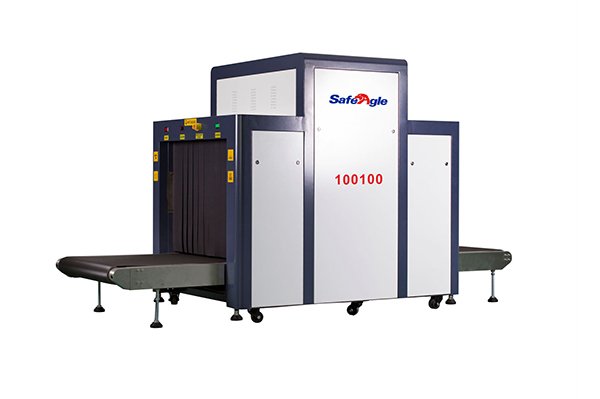

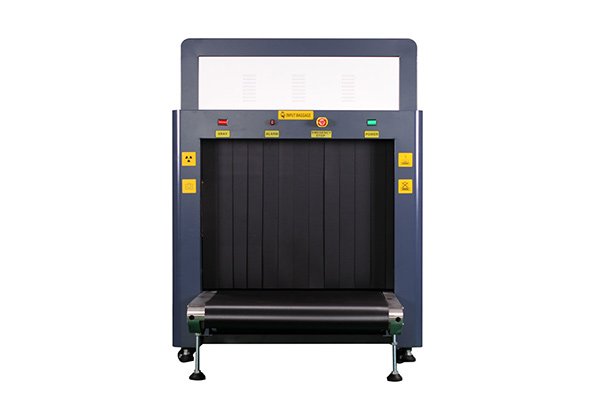

Safeagle F100100C x-ray scanning machine is designed to detect prohibited items and threats by screening big bags and heavy package at security checkpoints. Ideal for using at public area, such as checkpoint, shopping mall, customs, port, gym, warehouse and more. 100100 is a great choice for large venue and support bidirectional operation.

General Specification

Tunnel Size …………………  1005*1000mm
X-ray Sensor ………………   Multi-energy
Max. Load …………………    250 kg(Evenly distributed)
Conveyor speed …………   0.22m/s
Conveyor height …………  370mm
Image Resolution ………   21.5”LCD 1920*1080
System Noise ……………    <58 dB
Film safety …………………   Guarantee ISO 1600 Film
System Voltage …………    220 VAC (±10%) 50±3HZ
Power Consumption …    0.8kw (Max)

Standard Features

  • High Definition Image
    Adopt new generation of HD schema design, providing clear images and stable performance.
  • Dynamic Processing
    Real-time display, optimization functions like edge enhancement, amplification and so on.
  • Image Management
    Built-in image management system, which enables users to browse saved images quickly.
  • Intelligent Alarm
    User can set the alarm threshold, and realize acousto-optic alarming prompt when the impermeable items are detected.
  • Green Lead Curtain
    Wear-resistant, pollution-free, long service life.
  • Self-Diagnose
    Automatically prompt when failure is detected, and be convenient to maintain.
  • Shutdown With One Key
    When you try to turn off the equipment, just rotate the key, which is convenient and simple.
  • Network Interface
    Use standard Ethernet port to transmit images with rapid processing and great anti-interference performance.
  • Intelligent Roller
    Roller will automatically rotate when there is luggage on the conveyor belt, otherwise, the roller will stop rotating making this product environmental-friendly and energy-saving.
  • Threat Image Protection
    TIP is fully configurable by high level users, where parameters such as type of threats, frequency of projection etc. can be configured.

Compliance

  • CE compliance
    Directive 2004/108/EC Electromagnetic
    Directive 2006/42/EC Machinery
    Directive 2006/95/EC Low Voltage
  • ISO9001 Quality Management System
  • ISO14001 Environment Management System
  • OHSAS18001 Occupational Health Management System

Applications

Hotel, Checkpoint, Shopping mall, Customs, Port, Gym, Warehouse, Railway station, Express etc.

Installation Sites

Railway station in Shenzhen China
SF Express in Beijing China
Hotel in India
Warehouse in Afghan

Product Certification

Product Cases (Partial)
