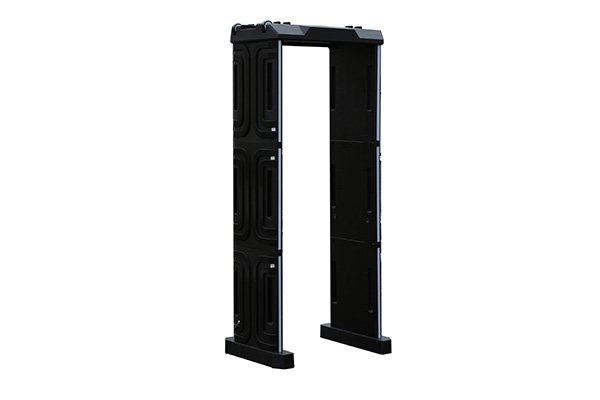

6/12/18 zones Portable walk through metal detector

Product Introduction

BX6001 walk through metal detector foldable is an Anti-terrorist and Police equipment to check whether there is any metal items been hided in the body, such as metals, guns, controlled knives and so on. It’s portable and foldable, waterproof, can be transported in a car or van, and single person assembly without tools less than 5 minutes, built in back-up battery which can working for 8 hours.

General Specification

Sensitivity level: 4085
Each zone sensitivity level: 355 (Adjustable)
Power consumption: 20 W
Working frequency :1~40 bands
External Dimension: 2210x912x698mm
Passage Dimension:2000x720x520mm
Packing Dimension: 975x625x860mm
N.W/G.W: 35KG/ 45KG
Working voltage: AC85V~264V 50/60Hz
Working environment temperature: -20℃~+65℃

Advanced Features

  • IP Grade: IP67 superior waterproof performance.
  • Portable module design, equip with wheels for easily move, with remote control.
  • The whole system embedded with 8 hours backup battery, with usage indicator under the LED display.
  • 4085 adjustable sensibility levels.
  • 6/12/18 individual detect zones.
  • Self diagnostic, it will inform the user when exit the system.
  • Memory Feature Stores Settings for last operator when power off.
  • DSP and Microprocessor Controlled , login into the control panel safely.
  • Head-to-Toe, Zone Specific Detected.
  • Self calibration once power on.
  • Automatic counting function.


  • CE compliance
  • ISO9001 Quality Management System
  • ISO14001 Environment Management System
  • OHSAS18001 Occupational Health Management System


Schools and sports event
Meetings and VIP Security
Outdoors security protect
All the place that need the high sensitivity and portable metal detector

Installation Sites

Dapeng music beach in Shenzhen China
Police office in India
